LAYER VIEW

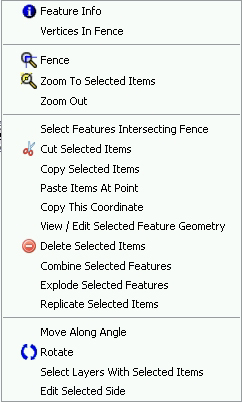

Layer View is the graphical display of the layers. To access to Layer View Menu left click on a selected feature
- Feature Info tool
This tool shows feature information.
Clicking on one or more features opens the Feature information window where Users can choose between the Table View and the HTML View.
- Vertices in Fence
It opens a new window with the coordinates of all the vertices selected by a fence
- Fence
This function allows Users to zoom to fence (see also Toolbar>fence).
- Zomm to select items
This function allows Users to zoom to select features (see Toolbar>Select for selecting items).
- Zoom out
Zoom out from a point
- Select features in fence
Select the features touched by a fence (see Toolbar Function>Fence) already drawn
- Cut selected items
Cut the selected items from the layer
- Copy selected items
Copy the selected items from the layer
- Paste Items at Point
Past copied items to the cursor point.
- Copy this coordinate
LAtitude and Lungitude coordinates of a point can be copied to clipboard and paste in a TXT document
- View / Edit selected feature
This function opens a new window where vertices feature geometry is shown in WKT
- Delete selected items
Delete the selected items from the layer
- Combine selected features
Two o more features can be combined as a group. This can be edit, move and delete. See Editing Toolbox to modify a single feature of a group. Feature which are combined in a group lost non-spatial attributes
- Explode selected features
A combined group of features can be devided ion the singles features
- Replicate selected items
Duplicate the selected items from the current layer to a new one.
This function permits also to duplicate the items inside the same layer, but it is quite difficult to separate in the workbrench the duplicate from the original since they both have the same coordinates.
- Move along Angle
This function allows to move selected features along an angle. Users can choose the angle and the moving distance.
- Rotate
Features can be rotate in clockwise direction. Users can choose the angle and the central point of the rotation
- Select Layers with selected Items
This function allows to select the layers containing already selected items.
- Edit selected Side
Feature sides can be edit. Users can choose the side and inspect the lenght and the angle of the side
