OpenJUMP
View

Back to OpenJUMP List of Functions

---

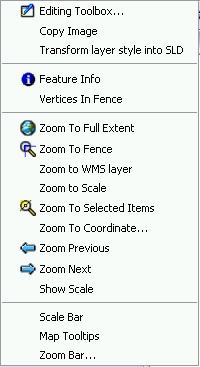

VIEW

• Editing Toolbox…
  This function opens the Editing Toolbox window with editing and drawing tools.
  You can read a short description or tool tip for each tool by opening the editing tool box and allowing your mouse cursor to hover over the button that activates the tool. You can also read about the tools in the OpenJUMP 1.0.1 Basics Tutorial” (Written by Uwe Dalluege). Look in the The Editing Toolbox section on page 9 of the document.

• Copy image
  Users can copy the image currently displayed in the Layer View to the computer’s clipboard. This will allow the user to then paste the resulting image in a drawing or raster software like The Gimp or Irfanview.

• Transform Layer Style Into SLD
  Transform the style of a selected leyer in a SLD “Style Layer Descriptor”. SLD is basically a schema in xml format which describes the apparence of the layer. You can read more about the format here .

• Feature Info
  This function opens the Feature Info panel. The user can then choose to view the feature information displayed in the panel in one of two formats. The first is the Table View format and the second is the HTML View format.
  For the description of Feature Info panel please see the Toolbar>Feature Info Tool section of the OpenJUMP Function List Documentation.

• Vertices in Fence
  It opens a new window with the coordinates of all the vertices selected by a fence

• Zoom to full extent
  Zoom to the full extention of the project

• Zoom to fence
  Zoom to the extention of the fence

• Zoom to WMS leyer
  Zoom to the WMS “Web Map Service” leyer extention: See Menubar>Layer>Add a WMS query…

• Zoom to Scale
  This function opens a new window where it is possible to select the Zoom scale of the view

• Zoom to selected features
  User can zoom to selected features on the layer

• Zoom to coordinates…
  This function opens a new window where user can write coordinates of an item or of an area and zoom to them

• Zoom previous/Zoom next
  The same as in other drawing software

• Show scale
  User can display the current scale on the screen. This scale is displayed on the bottom-right side of the layer view

• Scale bar
  With this function a scale bar is displayed on the bottom left side of the layer view

• Map Tolltips
  The “View>Map Tooltips” will display the attribute data of a feature when the cursor is hovering over.
  This function can be used to display photoes stored in folders or deriving from Web.
1. Create a new attribute field (string) and call it, for instance FOLDER
2. For each feature write the HTML or the drive address of the files. This is the basic syntax:
   • Web: < img src=”http:/XXX/YY.gif” >
   • File path with drive: < img src=”file://localhost/C:/FOLDER/YY.jpg” >
   • File path without drive: < img src=”file://localhost/FOLDER/YY.jpg” >
   • To limit the size of images, you can include the
     height and width limits:
     < img width=276 height=110 src=”http:/XXX/YY.gif” >

• Zoom bar…
  A new zoom bar windows is displayed on the OpenJUMP Workbench

---
